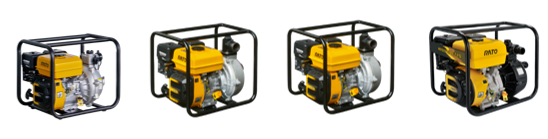

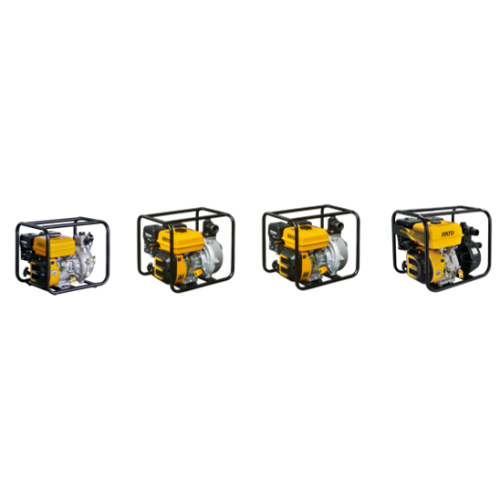

Модель: High-pressure Pumps
марка: Рата
| Продажа единиц жилья: | pcs |
The file is encrypted. Please fill in the following information to continue accessing it
|
Model(New) |
WH15G |
WH20G |
WH20G |
WH30G |
|
Engine type |
Single cylinder, 4-Stroke(OHV) |
|||
|
Starting system |
Recoil starter |
Recoil starter |
Recoil starter |
Recoil starter |
|
Bore×Stroke |
70x55mm |
70×55mm |
88x64mm |
88x64mm |
|
Displacement |
212ml |
212ml |
389ml |
389ml |
|
Compression ratio |
8.5: 1 |
8.5 : 1 |
8.5 : 1 |
8.5 : 1 |
|
Net power |
4.2kW/3600rpm |
4.4kw / 3600rpm |
8.2kW/3600rpm |
8.2kW/3600rpm |
|
Fuel consumption |
≤395(g/kW·h) |
≤395(g/kW·h) |
≤374(g/kW·h) |
≤374(g/kW·h) |
|
Net torque |
11N.m/2500rpm |
12N.m / 2500rpm |
25N.m/2500rpm |
25N.m/2500rpm |
|
Pump set |
1.5" high lift pump |
2" high lift pump |
2" high lift pump |
3" high lift pump |
|
Suction port diameter |
38mm(1.5") |
50mm(2") |
50mm(2") |
75mm(3") |
|
Discharge port diameter |
38/25/25mm(1.5"/1"/1") |
50mm(2") |
50mm(2") |
64/38/38mm(2.5“/1.5”/1.5“) |
|
Suction head lift |
7m |
7m |
7m |
7m |
|
Total head lift |
75m |
50m/80m |
90m |
65m |
|
Discharge capacity |
12m³/h |
30m³/h/16m³/h |
30m³/h |
38m³/h |
|
Dimensions (L×W×H) |
500×395×446mm |
500×395×446mm |
610×480×537mm |
610×480×537mm |
|
Net weight |
28.5kg |
29.5kg |
64kg |
50kg |
