Модель: HPP series
марка: Рата
| Продажа единиц жилья: | pcs |
The file is encrypted. Please fill in the following information to continue accessing it

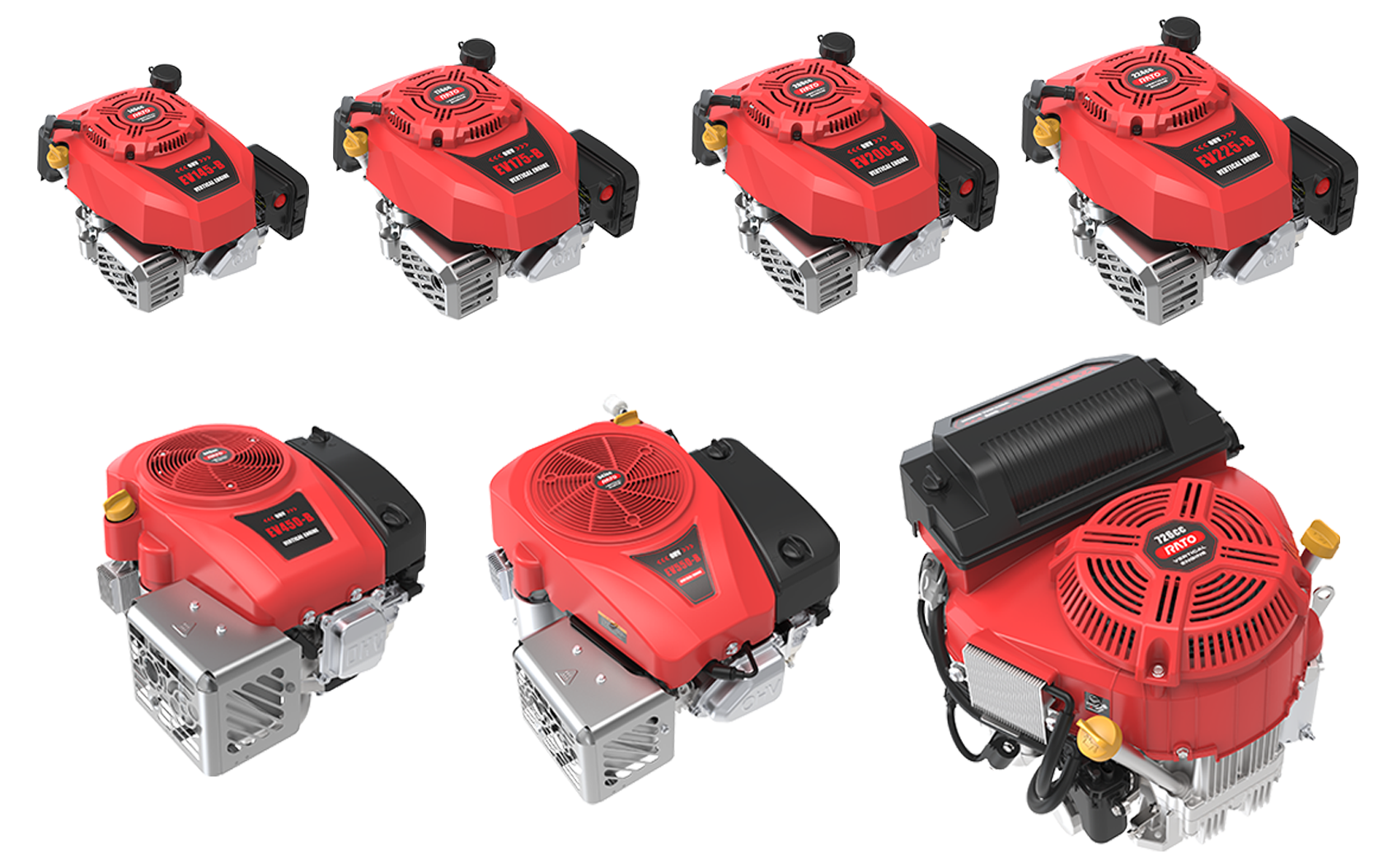

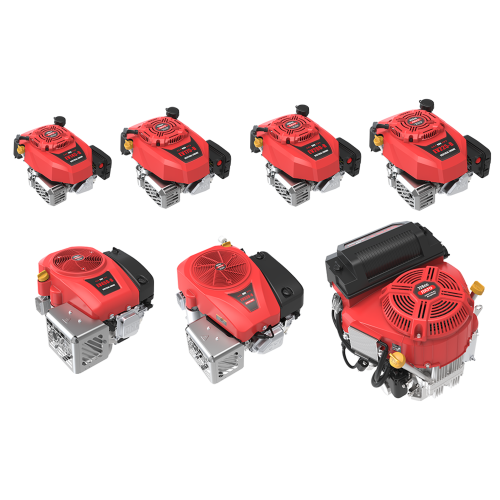

Серия вертикальных двигателей вертикального вала Rato HPP характеризуется следующими функциями:
| Model | EV145-B | EV175-B | EV200-B | EV225-B | EV450-B | EV550-B | E2V730E-B |
| Engine type | Single cylinder | V-twin | |||||
| Bore x Stroke(mm) | 45x55 | 68x48 | 68x55 | 72x55 | 92x67.6 | 94.5x78 | 78x76 |
| Displacement(cc) | 143.9 | 174.3 | 199.7 | 223.9 | 449 | 547 | 726 |
| Compression ratio | 8.5:1 | 8.5:1 | 8.5:1 | 8.5:1 | 8.9:1 | 8.6:1 | 8.8:1 |
| Net power(KW/3600rpm) | 3.1 | 3.6 | 4.2 | 4.6 | 10 | 12 | 17 |
| Net torque(N.m/2500rpm) | 10 | 11.1 | 12.7 | 13.5 | 30 | 36.2 | 50 |
| Starting system | 手/电 | 手/电 | 手/电 | 手/电 | 电 | 电 | 电 |
| Oil capacity（L） | 0.5 | 0.5 | 0.6 | 0.6 | 1.5 | 1.6 | 2.0L |
| Fuel tank（L） | 1.2 | 1.2 | 1.5 | 1.5 | / | / | / |
| Dimensions(LxWxH)mm | 410*347*260 | 415*326*260 | 460*415*306 | 480*470*315 | 505*462*418 | ||
| Net weight(kg) | 9.2 | 9.5 | 10.6 | 10.8 | 32.5 | 35 | 41.5 |
