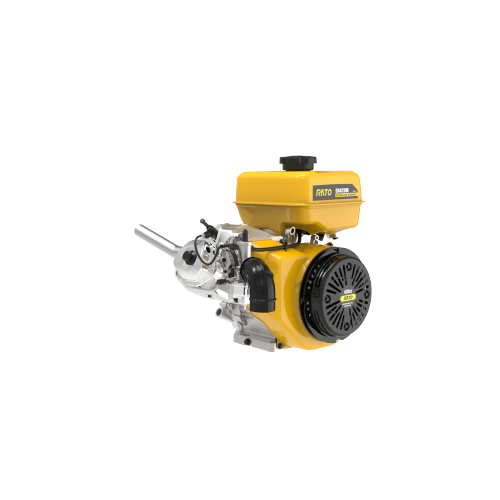

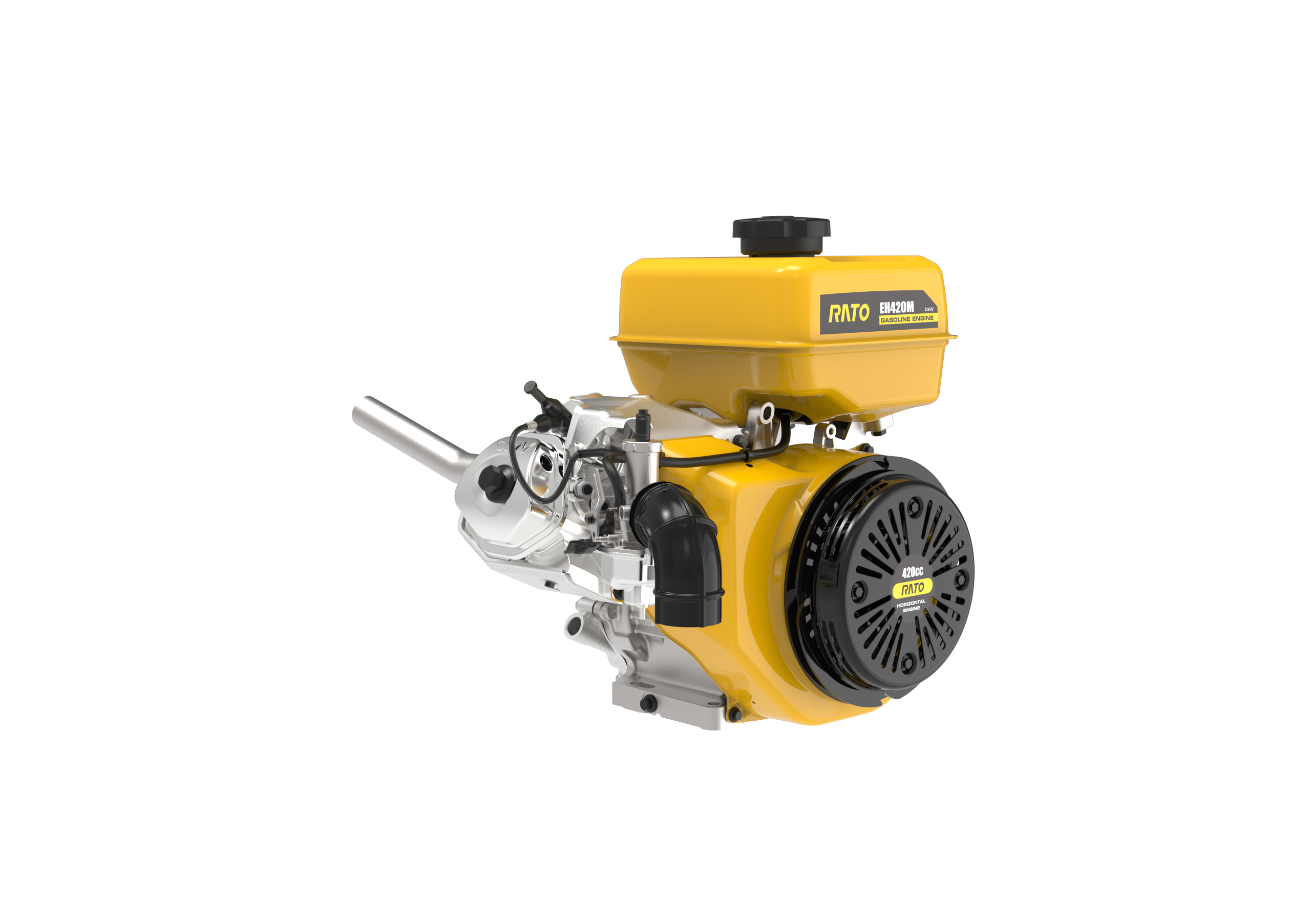

Модель: Marine Engine
марка: РАТО
| Продажа единиц жилья: | pcs |
The file is encrypted. Please fill in the following information to continue accessing it

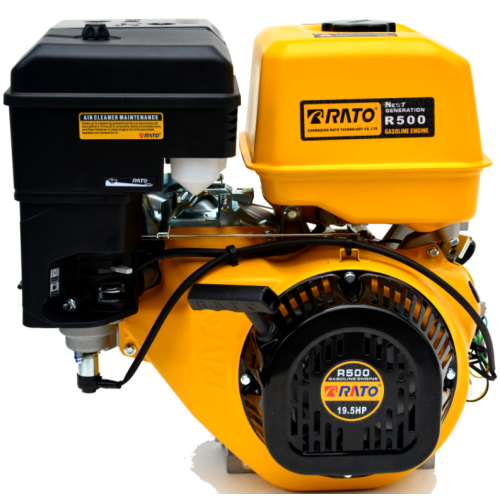

Серия судовых двигателей RATO имеет следующие особенности:
| MODEL | EH210M | EH210M-V | EH420M | EH420M-V/R420-V | EH500M-V/R500 | EH580M-V |
| Engine type | Single cylinder,4-Stroke(OHV) | |||||
| Bore×Stroke（mm） | 70x55 | 70x55 | 90x66 | 90x66 | 94x72 | 94x82.5 |
| Displacement（cc） | 212 | 212 | 420 | 420 | 500 | 576 |
| Compression ratio | 8.5 | 9 | 8.5:1 | 8.5:1 | 8.5:1 | 8.6:1 |
| Net power(kW) | 3.7 | 4.5 | 10.2kw/3600rpm | 10.8kw/3600rpm | 13 | 15 |
| Net torque(N.m/2500rpm) | 12 | 13 | 29.4 | 31.2 | 31 | 34 |
| Starting system | Recoil | Recoil | Recoil | Recoil | Recoil | Recoil |
| Oil capacity | 0.55 | 0.55 | 1.1 | 1.1 | 1.1 | 1.4 |
| Fuel tank capacity(L) | 3.3L | 3.3L | 6L(Metal） 8L(Plastic） |
6L(Metal） 8L(Plastic） |
8L(Plastic） | 8L（Plastic） |
| Dimensions(LxWxH) | 360*320*345 | 360*320*345 | 480×320×440 | 450*440*440 | 440x325x315 | 550*368*482 |
| Net weight | 14.3 | 14.7 | 31 | 32.5 | 33 | 35 |
| Selected customer models | / | / | / |
R420-V
 |

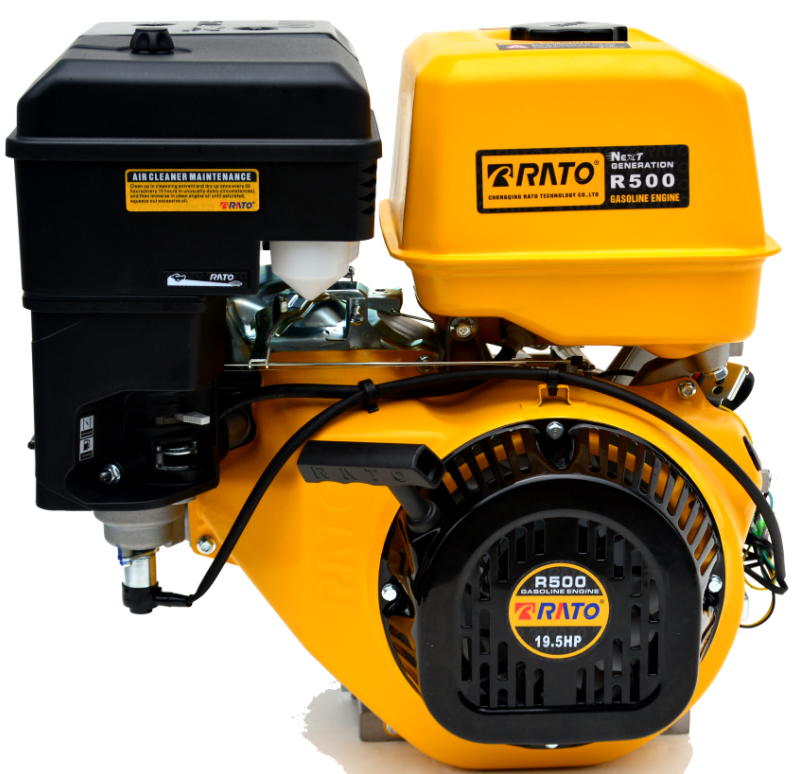

R500
|
|
